Pressure Gauge AFKLOK

 โพสต์เมื่อ : 19 มี.ค 2567 เวลา 2:19 น.

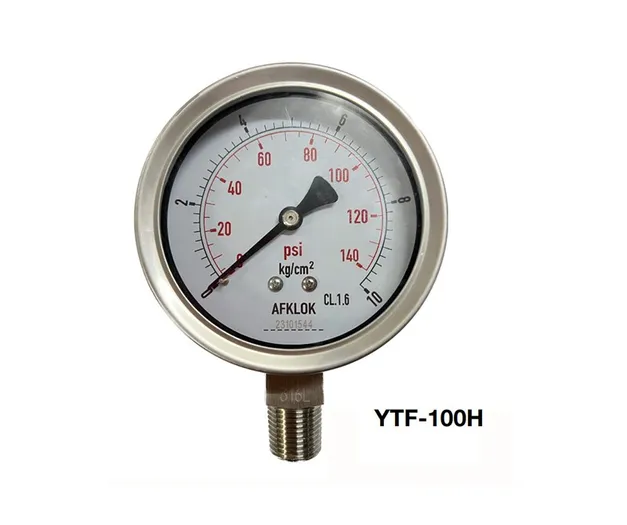

YTF-100H
YTF-100H863979655540

(YTF,YTN Series)

SPECIFICATIONS

(YTF,YTN Series)

(Case size):

40, 50, 63, 100, 150mm.

(Accuracy):

± 1%, ± 1.5%, ± 2.5%

(Case material):

SUS316

(Range);

Pressure 0~0.1Mpa~100Mpa

Vacuum -0.1~0Mpa

Compound -0.1~

(Bourdon material):

SUS316

(Internals material);

SUS316

(Connection material):

SUS304.option SUS316

(Connection):

M20x1.5 1/2NPT

(others on Request)

(Dial):

aluminum ,white with black marking

(Pointer):

(aluminium)

(Window):

(Plexi glass)

(Ambient temperature):

-40~-70C

(Protection):

IP55.IP65

(Ring material):

(Stainless steel)

ytp-100h623084920583

ytp-100h623084920583copy

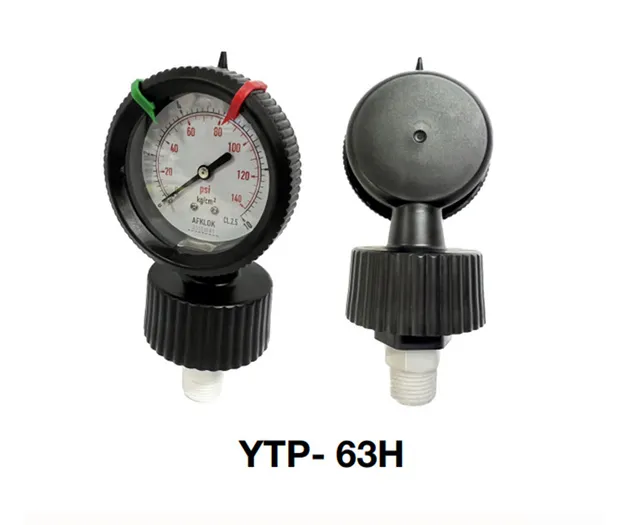

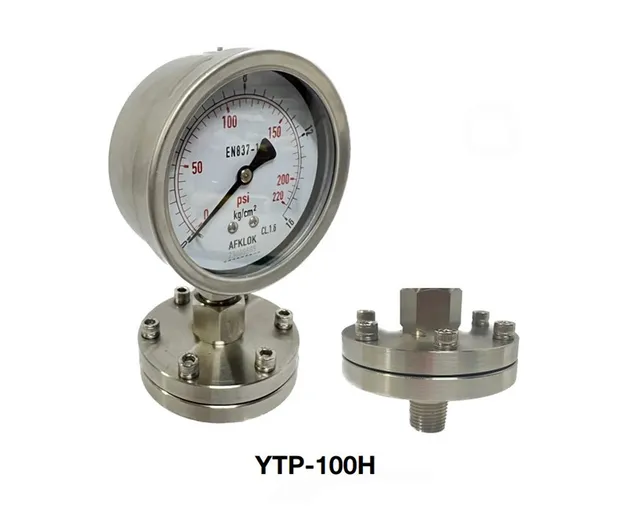

YTP-100H, YTP-63H

SPECIFICATIONS

(YTF,YTN Series)

Case size:

100, 150mm.

Accuracy:

± 1.5%

Case material:

Stainless steel (other on Request: PVDF)

Range:

Pressure 0~0.1Mpa~60Mpa

Vacuum -0.1~0Mpa 6Mpa/-0.1~2.4Mp

Compound -0.1~0.06Mpa/-0.1~2.4Mp

Bourdon material:

316ss

Movement material:

stainless steel

Diaphragm:

316ss, HC, Ta, Monel, PTFE Coating (other on Request: Tantalum)

Connection:

M20x1.5or/1/2NPT(other on Request)

Connection:

ANSI, JIS,DIN,HG20592-97

Ambient temperature:

-40~+70 °C

Protection:

IP55,IP65

Filling liquid:

Silicon (Select glycerin or Fluor lube oil)
